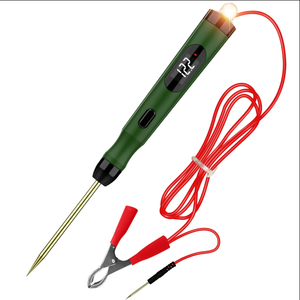

P50 Automotive Circuit Test
P50 circuit test is ideal for checking various vehicles electrical circuits, quickly check automotive headlights, taillights, turn signal circuits, faulty sockets, fuse connections, also for testing other 5-30V DC wirings and circuits. LED digital display, easy to test day and night Small alligator pliers are convenient for grabbing thin wires for testing Equipped with large alligator clip and the protective cover is designed for better-insulted effect and protection.
Function :
Check whether the fuse is blown
Check whether the battery is leaking
Detect whether the high-voltage package and high-voltage line have broken down and leaked electricity
Check whether the positive and negative power supply of the electrical appliance is normal
Detect the LAN local area network circuit
Detect the internal signal of the computer
Distinguish between real electricity, virtual electricity, series electricity and poor grounding
After the pen is detected, the lamp burns out and there is a reminder function
Awl function
Jump function
Torch lighting function
Short circuit detection function
Fault code reading function
Detect engine Hall-type speed sensor and camshaft position sensor
Detection of vehicle speed sensor
Detect idle speed motor
Detection of ABS circuit
Detect airbag circuit
Exhaust gas recirculation circuit
detection
The output signal of the analog computer
No-car test
Check the starting circuit(generally set theprobe to work mode three first)
lgnition circuit detection
Install an anti-theft device(the following test can try to switch the different working modes
of the probe to achieve the best use Effect)
Mainly function
1. voltage measurement function;
2. Ball load measurement;
3. voltage measurement with bulb load;
4. For the load plug, the probe directly connected to the clip can be used in combination with the probe of the electric pen to directly carry out load simulation measurement, which is convenient for fault diagnosis.
5. voltage polarity display function;
6. switching of three detection modes;
7. multi band frequency detection can be realized;
Specification
item: value
Type: Battery Tester
Voltage: 5-30V
Power: 5-15W
Applicable Models: universal
Combination: Voltage Display, Electric Test, Battery Tester
Place of Origin: China
Model Number: P50
Warranty: 1Months
Item Type: Electrical Testers
Status: OEM/STOCK
Certification: CE/FCC
标题: Automotive Circuit Tester - 5-30V Electrical Diagnostic Tool with LED Display, Short Circuit Detection, Universal Compatibility
新的产品描述
P50 Automotive Circuit Tester – Universal 5-30V Electrical Diagnostic Tool
Discover the P50 Automotive Circuit Tester, your go-to solution for diagnosing electrical circuits in vehicles. Perfect for testing headlights, taillights, turn signals, faulty sockets, fuses, and other 5-30V DC wiring systems, this versatile tool simplifies troubleshooting day or night. Featuring an LED digital display, small alligator pliers for precise wire testing, and a large alligator clip with a protective cover for enhanced insulation and safety, the P50 is engineered for efficiency and reliability. Whether you’re a professional mechanic or a DIY enthusiast, this circuit tester is a must-have for automotive electrical diagnostics.
Key Features & Functions:
Voltage Measurement: Accurately test circuits from 5-30V with clear polarity display.
Comprehensive Circuit Testing: Check fuses, battery leaks, high-voltage lines, appliance power supply, LAN networks, computer signals, and more.
Sensor & System Detection: Diagnose Hall-type speed sensors, camshaft position sensors, vehicle speed sensors, idle speed motors, ABS circuits, airbag systems, and exhaust gas recirculation circuits.
Advanced Diagnostics: Detect short circuits, read fault codes, distinguish real/virtual electricity, and identify poor grounding.

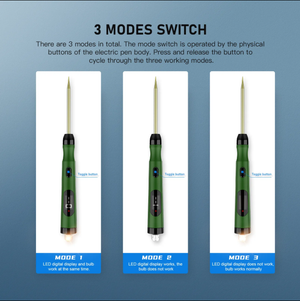

Multi-Mode Operation: Switch between three detection modes and multi-band frequency settings for precise results.
Load Simulation: Use the probe and clip combo for bulb load testing and fault diagnosis.
Additional Tools: Includes awl function, jump function, torch lighting, and a reminder when the lamp burns out.
Applications: Test starting circuits, ignition systems, and anti-theft device installations with adjustable working modes for optimal performance.
Specifications:
Voltage Range: 5-30V
Power: 5-15W
Display: LED digital voltage display
Compatibility: Universal for all vehicle models
Combination: Voltage display, electrical testing, battery testing
Item Type: Electrical Tester
Certification: CE/FCC
Warranty: 1 Month
Origin: China
Model: P50
Availability: OEM/Stock
Why Choose the P50?
The P50 Automotive Circuit Tester combines portability, precision, and multifunctionality, making it ideal for testing automotive wiring, sensors, and circuits without needing a vehicle present. Its user-friendly design, complete with a bright torch and protective features, ensures safe and effective use in any lighting condition. Upgrade your diagnostic toolkit with this CE/FCC-certified tester and tackle electrical faults with confidence.
Perfect For: Automotive repair, electrical troubleshooting, DIY vehicle maintenance, and professional diagnostics.
